Hybrid Cable(2 x 2)

Please contact us for more detail spec & capacity

General Features

  1. for FTTA(RRU, BBU)

  2. 1 Pair Electric conductor (AWG 12, 14, 16 stranded)

  3. 1 Fiber Optic Duplex LC Connector

Hybrid(2&2) drawing02

Technical Specification

Cable Structure

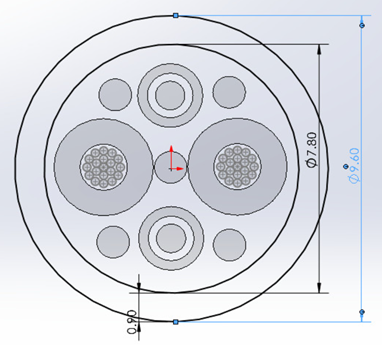

Hybrid(2&2) cross section
Hybrid(2&2) cross section01

General Composite Specification

Hybrid(2&2) general spec

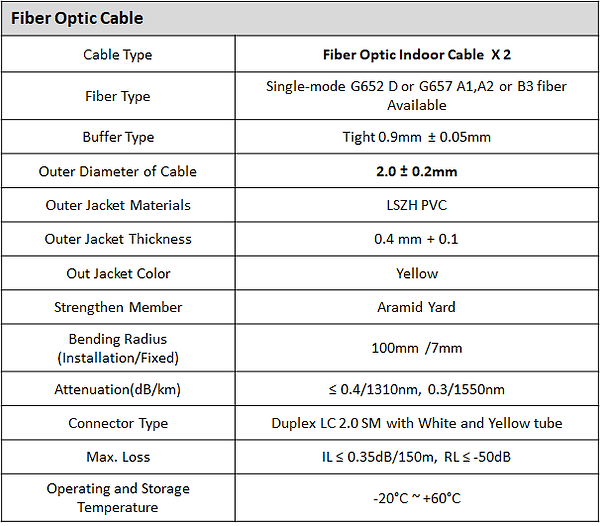

Fiber Optic Cable Specification

Hybrid(2&2) Fiber drawing
Hybrid(2&2) Fiber drawing01
Hybrid(2&2) Fiber spec

Conductor Specification

Hybrid(2&2) conductor drawing
Hybrid(2&2) conductor drawing01
Conductor type
1) AWG 16

Diameter of conductor : 1.5mm

Diameter of Insulation: 3.05mm

Outer Diameter of Composite : 9.6mm

Hybrid(2&2) conductor spec
Conductor type
1) AWG 14

Diameter of conductor : 1.88mm

Diameter of Insulation: 3.45mm

Outer Diameter of Composite : 10.0mm

Conductor type
1) AWG 12

Diameter of conductor : 2.36mm

Diameter of Insulation: 3.95mm

Outer Diameter of Composite : 11.0mm

Wooden Cable Bobbin

Double Flange

Diameter of Flange :  90cm / 50cm (35.433”/19.685”)

Width : 70 : 10cm (27.59” : 3.937”)

Thickness of flange : 3cm (1.181”)

Hybrid(2&2) bobbin
Hybrid(2&2) bobbin01
